CASTUGNON

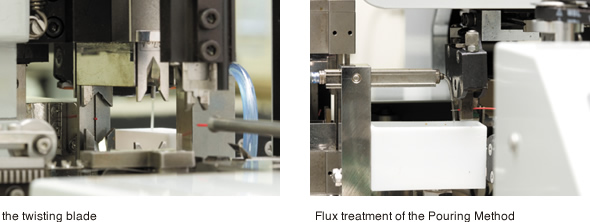

Based on 551HX whose strong point is super fast processing, in order to perform the process of twisting and soldering more speedily, the twisting blade is put in the cutter block and also the compactification of the operation of changing a wire is made extreme.Flux treatment adopted the Pouring Method which is our new idea has realized the processing time of 04 second for each. Since the mechanism that the flux is constantly rotated and poured and applied to the wire reduces the evaporation of the flux to the extreme, the waste of the flux is cut and economic efficiency is great.

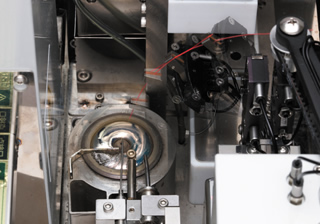

The new idea of the stand-alone soldering unit has newly developed. The soldering unit which is developed to pursue the neater finish is made independent from the HX main body to extremely reduce the oxidation by the vibration of the fluid level which is caused by the vibration during the crimping etc.Reducing of the preparation time has been enabled thanks to the shortening of heating up the solder time （lead-free solder to 350 deg C） compared to the old units.
The soldering bath which is made with carved titanium has been realized perfect lead-free.
The perfect titanic soldering bath has been adopted in order to meet the high melting temperature of lead-free bath. Without the fear of eating away, always equable soldering is promised. And the preparation time (from turning on the power to the beginning of operation) is only 10 minutes thanks to the heat efficiency in the bath is the best.
Pursuing the processing of shorter length wire…

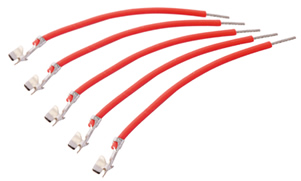

By means of moving the setting position of the cutting blade in the cutter block, shorter lead processing has been realized. ( minimum 19mm) Handling the thin and short leads which are mainly used for the compact electronic devices has been enabled.
Everyone can operate simply and easily.

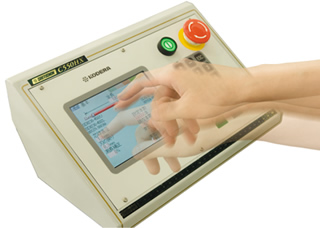

The unit integrates a 5.7 inch full color LCD touch panel which is interactive data entry and has crimp force monitoring system and also the screen can be changed to English, Traditional Chinese, Simplified Chinese and Korean including Japanese with a single touch
Machine Specifications
■ Processing Lengths
| Value that can be set in longest Stripping length |
|
||||||
|
|||||||
| Minimum processing length | L ≧19mm
|
||||||
| Maximum cutting length | 99,999mm（about100m） | ||||||
| Cutting tolerance | Within ±(0.1+0.0005xL)mm; L= Cutting length |
■ Crimper
| Crimping terminal | Open barrel chain terminals (side feed) Max,27mm. |
| Crimper capacity | 1.2ton |
| Control method | Digital control |
■ Measurement (body only), Weight
| Width×Depth×Height | 700mm×550mm×1,210mm |
| Weight | 190kg |
■ Supplies
| Electric power supply | single phase AC100V～AC240V 50/60Hz | ||||
| Air supply | 18N ℓ/min 0.5MPa （Use clean , dry air.） | ||||
| Power consumption |
|
■ Processing wire
| Applicable wire diameter | AWG#18～AWG#32（Depending on wire） |
| Applicable wire type | AV、 AVS、 AVSS、 CAVUS、 KV、 KIV、 UL、 Teflon,etc.. |

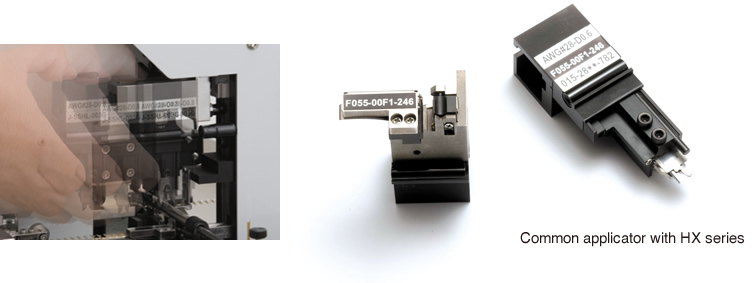

Applicators Specifications
■ Crimper
| Width×Depth×Height | 27mm×23mm×79mm | |||||||||||
| Weight | 150g | |||||||||||
| ID Information |
|
■ Dies Side
| Width×Depth×Height | 39mm×30mm×57mm | |||||
| Weight | 145g | |||||
| Optical terminal location sensor integrated, ID tag, Wireless RF Approx.100kHz data send/receive device | ||||||
| ID Information |
|
|||||
Process Capability Table
| Total length | Number of output pieces per hour |
|---|---|
| 30mm | 8,450pieces |
| 50mm | 8,200pieces |
| 70mm | 8,000pieces |
| 100mm | 7,750pieces |
| 150mm | 6,200pieces |
| 200mm | 5,250pieces |
| 300mm | 5,250pieces |
| 500mm | 5,250pieces |
Processing Conditions
| Wire：UL1571 AWG#30 |
| Terminal ：SSH-003T-P0.2 |
| Setting : Speed/Fast |
| With CPD-06 |
