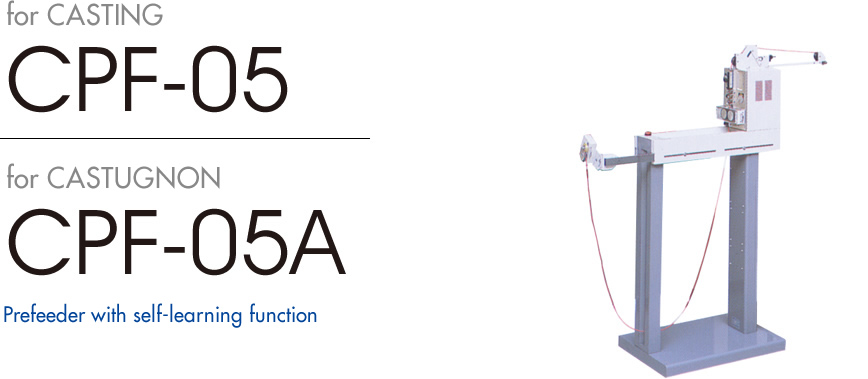

Self-leaning function by means of integrated micro computer will feed a wire to the machine neatly. It controls the slack of wire and unique wire straightener improves the products quality. Furthermore, the great value of the processing and high work efficiency are realized by high speed wire feeding performance (Max. speed 3.3m/sec.)
Specification
| MODEL | CPF-05A |
|---|---|
| OUTER DIMENSIONS | W420mm×D1,135 01,420mm×H1,350mm |
| WEIGHT | 40kg |
| POWER SUPPLY | AC100V or AC220V（single phase）50Hz/60Hz |
| POWER CONSUMPTION | 30W（Rest）/ 130W（Max.Activity）（AC100V） |
| TRANSACTION SPEED | 3.3m/sec.（Max） |
| WIRES SIZE | Max. φ6mm |
| DRIVE | Induction motor |

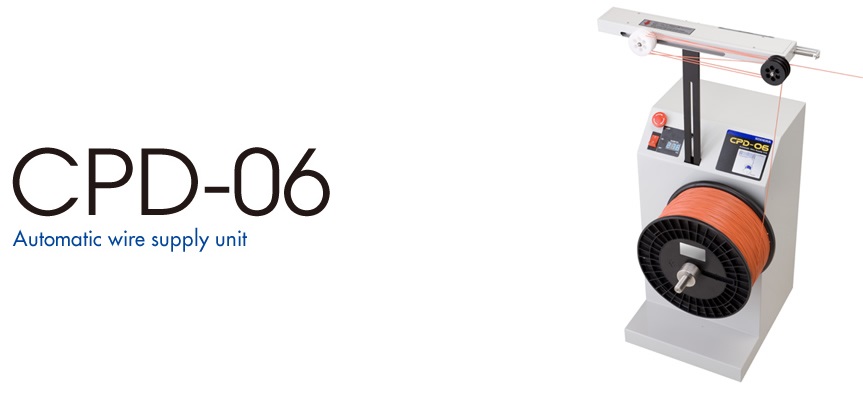

Holding from inside the winded wire prevents it from breaking. Of course you can set the wire with its tray. With the rotation sensor, the wire is rotated as much as it is unwound (fed) from the winded wire
Specification
| MODEL | CPD-06 | ||
|---|---|---|---|
| OUTER DIMENSIONS |
|
||
| WEIGHT | 35kg | ||
| POWER SUPPLY | AC200V ～ AC240V（single phase）50Hz/60Hz | ||
| POWER CONSUMPTION | Rated 12W / Max.70W（AC200V） | ||
| NUMBER OF SHAFT RATATION | Max. 1,200rpm | ||
| WIRES SIZE | Max. φ6mm | ||
| OUTER DIAMETER OF BOBBIN* | Max. φ600mm | ||
| WEIGHT OF BOBBIN | Max. 20kg | ||
| WIDTH OF BOBBIN | Max. 200mm | ||
| HOLE DIAMETER OF BOBBIN | 20mm～40mm | ||
| DRIVE | Stepping Motor |

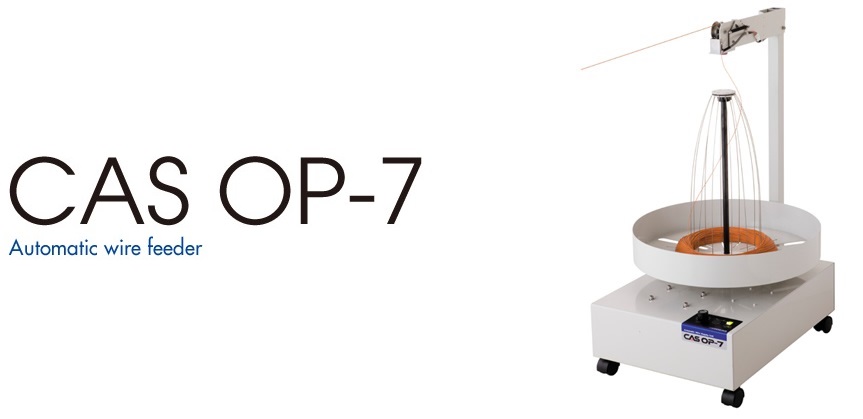

The unit supplies the wire while straightening the wire from the bobbin. The speed is controlled automatically, so that smooth supply is ensured.
Specification
| MODEL | CAS OP-7 |
|---|---|
| OUTER DIMENSIONS | W480mm×D610mm×H855mm |
| WEIGHT | 28kg |
| POWER SUPPLY | AC100V or AC220V（single phase）50Hz/60Hz |
| POWER CONSUMPTION | Rated. 5W / Max. 206W（AC100V） |
| TRANSACTION SPEED | 3.3m/sec.（Max） |
| WIRES SIZE | Max. φ6mm |
| DRIVE | Induction motor |
Self-leaning function by means of integrated micro computer will feed a wire to the machine neatly. It controls the slack of wire and unique wire straightener improves the products quality. Furthermore, the great value of the processing and high work efficiency are realized by high speed wire feeding performance (Max. speed 3.3m/sec.)

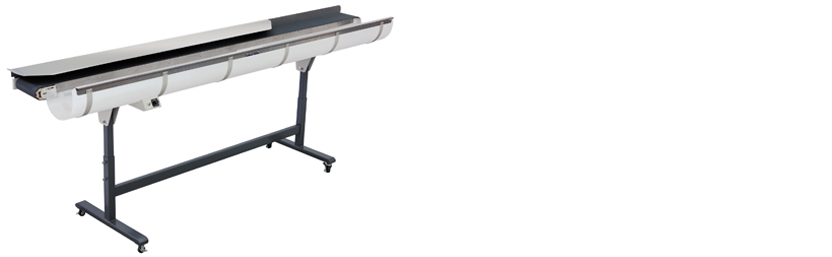

CC-250N
Belt Conveyer With Wire Tray
This is the belt conveyer to pass the processed wire smoothly to the next process. The length is 250cm, 200cm, 120cm, 45cm, and can be extended as per the needs. The conveyer's maximum speed is 4.5m/sec
| MODEL | CC-45 | CC-120A-50 | CC-120C | CC-200 | CC-250N | CC-400 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OUTER DIMENSIONS |
|
|
|
|
|
|
||||||||||||||||||
| WEIGHT | 27.5kg | 50kg | 39kg | 60kg | 59kg | 131kg | ||||||||||||||||||
| POWER SUPPLY | 100v | AC100V (single phase) or AC220V (single phase) | ||||||||||||||||||||||
| POWER CONSUMPTION | 60w | 120w | 120w | 120w | 120w | 120w | ||||||||||||||||||
| APPLICABLE WIRE LENGTH | 1000mm | 1500mm | 1500mm | 2500mm | 3000mm | 3000mm | ||||||||||||||||||
| BELT SPEED | 1.3 m/s | 4.5 m/s | 4.5 m/s | 4.5 m/s | 4.5 m/s | 4.5 m/s | ||||||||||||||||||
