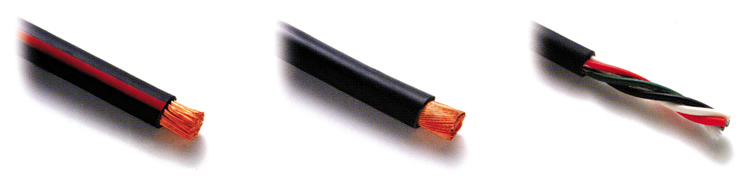

Dual 4WD powerful stripping unit is equipped. With that power, it can process the size of maximum 80sq(20mm). which is a surprise in conventional compact machines. It ’s a reliable machine that process battery cable, WL1 and WL2 without any difficulty.
| MODEL | C377A | ||||||
|---|---|---|---|---|---|---|---|
| OUTER DIMENSIONS | W1,026mm ×D520mm ×H325mm | ||||||
| WEIGHT | 86kg | ||||||
| POWER SUPPLY | AC100V～AC240V（single phase）50Hz/60Hz | ||||||
| POWER CONSUMPTION（100V） | 62W（Rated）378W（Max） | ||||||
| AIR SUPPLY | 5Nℓ/min 0.5MPa※1 | ||||||
| CUTTING LENGTH | 160mm～99,999mm | ||||||
| CUTTING TOLERANCES | ±（ 0.1＋0.0005×L ）mm※2 L : indicates a cutting length. | ||||||
| STRIPPING LENGTH |
|
||||||
| APPLICABLE WIRES |
|
||||||
| WIRE FEED SPEED | Variable | ||||||
| CUTTER MATERIAL | Ultra fine particle alloy | ||||||
| DRIVE SUPPLY | Stepping pulse motor / Air cylinder |
| Total Length | Pieces Processing speed：9 | Pieces Processing speed：7 |
|---|---|---|
| 180mm | 726 | 638 |
| 300mm | 696 | 614 |
| 500mm | 655 | 578 |
| 1000mm | 567 | 501 |
| 2000mm | 447 | 397 |
| 3000mm | 369 | 329 |
| 5000mm | 274 | 244 |
| Core diameter | 10mm |
| Blade move back | 4mm |
| Both ends stripping | 10mm |
