CASTING

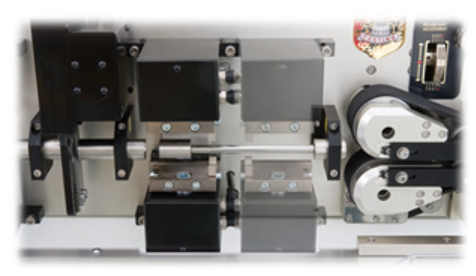

It doesn’t damage the core wire since stripping is performed with special round blade and cutting of the wire is processed with V-blade all together. Furthermore, belt feed system has actualized the stable length measurement because it can grasp the face of the cable whose surface is unlevel, which is often seen on cabtire cables or shield wires, etc. Switching of the belt feeding by air control can be performed at the flip of a switch on the operation panel.

Shifting of the front end strip unit is possiable!

Accuracy of processing the wire of stretchy insulation will go up if the front end strip unit is shifted to the position near the front end belt feed.

Specification

MODEL C385A
OUTER DIMENSIONS W716mm ×D430mm ×H266mm
WEIGHT 44kg
POWER SUPPLY AC100V～AC240V（single phase）50Hz/60Hz
POWER CONSUMPTION（100V） 35W（Rated）139W（Max）
AIR SUPPLY 0.06Nℓ/min 0.5MPa※1
CUTTING LENGTH 210mm～99,999mm
CUTTING TOLERANCES ±（ 0.1＋0.0005×L ）mm※2 L : indicates a cutting length.
STRIPPING LENGTH
FRONT END : MAX 1,500mm（ Need halh strip ）※2
REAR END : MAX 210mm（ Need halh strip ）※2
APPLICABLE WIRES
TYPE ABS wire, Air bag wire, 2 core shield wire, VSF, IV, KV, UL, Teflon , Glass Wire, etc
SIZE AWG#7（10sq）～AWG#28（0.08sq）※2
O.D. Max φ11mm※2
WIRE FEED SPEED Variable
CUTTER MATERIAL Ultra fine particle alloy
DRIVE SUPPLY Stepping pulse motor / Air cylinder

When Stripping length is long

Processing capacity (Actual data)
Number of processed wires per hour


Total Length Pieces
700mm 891
1000mm 769
1500mm 628
2000mm 530
2500mm 458
3000mm 405
4000mm 327

When Stripping length is short

Processing capacity (Actual data)
Number of processed wires per hour


Total Length Pieces
500mm 2,022
1000mm 1,263
1500mm 918
2000mm 726
2500mm 598
3000mm 507

Processing conditions

Both ends stripping ： 100mm
Half-strip length ： 50mm
Setting of speed ： 9
Close time ： 0.1sec
Open time ： 0.1sec

Processing conditions

Both ends stripping ： 60mm
Half-strip length ： 30mm
Both ends stripping 3mm
Setting of speed ： 9
Close time ： 0.1sec
Open time ： 0.1sec

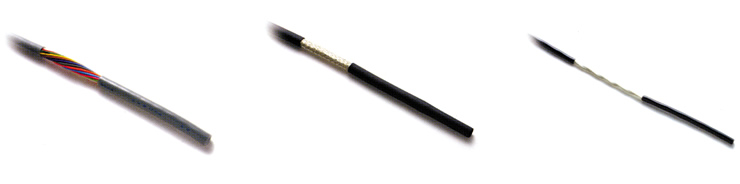

SAMPLE

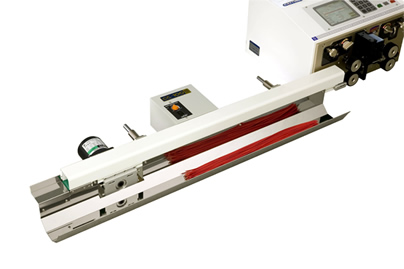

Just set up CC-100 on the left side of the CASTING series, it carries the finished wires by belt-conveyor and neatly deposits those wires on the tray. It contributes to improving the work efficiency rate.

Specification

MODEL CC-100
OUTER DIMENSIONS W1200mm ×D340mm ×H135mm
WEIGHT (NET) 10kg
POWER SUPPLY AC100VorAC200V（single phase）50Hz/60Hz
POWER CONSUMPTION MAX15W（AC100V）
O.D. SIZE φ1mm Minimum※
DRIVE Induction motor
Air cylinder
