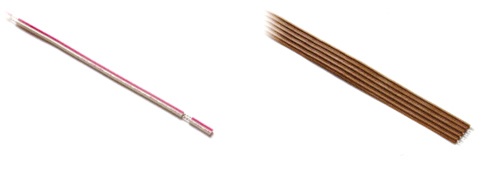

C373AF inherits Performance from C373A. The maximum width can be processed to cable up to 40 mmFlat cable, ribbon cable dedicated machine.
| MODEL | C373AF | ||||||
|---|---|---|---|---|---|---|---|
| OUTER DIMENSIONS | W430mm ×D510mm ×H265mm | ||||||
| WEIGHT | 33kg | ||||||
| POWER SUPPLY | AC100V～AC240V（Single phase）50Hz/60Hz | ||||||
| POWER CONSUMPTION（100V） | 40W（Rated）215W（Max） | ||||||
| AIR SUPPLY | 9Nℓ/min 0.5MPa※1 | ||||||
| CUTTING LENGTH | 0.1mm～99,999mm | ||||||
| CUTTING TOLERANCES | ±（ 0.1＋0.0005×L ）mm※2 L : indicates a cutting length. | ||||||
| STRIPPING LENGTH |
|
||||||
| APPLICABLE WIRES |
|
||||||
| WIRE FEED SPEED | Variable | ||||||
| CUTTER MATERIAL | Ultra fine particle alloy | ||||||
| DRIVE SUPPLY | Stepping pulse motor / Air cylinder |
| Total Length | Pieces |
|---|---|
| 100mm | 2,300 |
| 200mm | 2,100 |
| 300mm | 1,950 |
| 500mm | 1,700 |
| 800mm | 1,450 |
| 1000mm | 1,300 |
| 1500mm | 1,050 |
| 2000mm | 850 |
| 3000mm | 650 |
| 5000mm | 450 |
| Core diameter | 0.75mm |
| Blade move back | 0.15mm |
| Both ends stripping | 3mm |
| Setting of speed | 9 |
| Normal mode | |
| Wire | UL1007／AWG#22 |

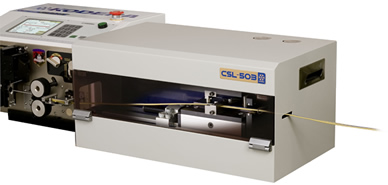

CSL-503, which has been developed as a special optional item only for C373AF, can make a slitting processing on the ends of flat cable. Maximum wire width is 40mm. Maximum combined slitting length at front and rear ends of cable is up to 200mm. The ratio of front and rear slitting lengths can be adjusted very simply and quickly. This is a automatic slitting machine intended to improve the comfortable performance of C373AF
| MODEL | CSL-503 |
|---|---|
| OUTER DIMENSIONS | W550mm ×D310mm ×H270mm |
| WEIGHT（NET） | 25kg |
| POWER SUPPLY | AC100V又はAC200V（single phase）50Hz/60Hz |
| POWER CONSUMPTION | 5W |
| MAX SLITTING LENGTH | 200mm |
| OPERATIONAL PRESSURE RANGE | 4～7kg/㎡ |
| MAXIMUM WIRE WIDTH | 40mm |
| DRIVE | Air cylinder |

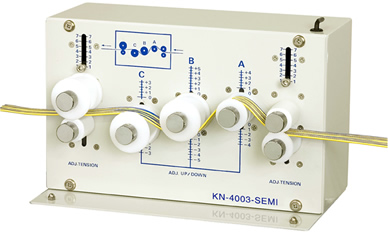

Rolling or twisting of wires is one of the major causes of troubles while processing wires. This unit automatically straightens wires, and performs the function of feeding wires into a main unit, thus insuring the stable wire processing.
Just set up CC-100 on the left side of the CASTING series, it carries the finished wires by belt-conveyor and neatly deposits those wires on the tray. It contributes to improving the work efficiency rate.
| MODEL | CC-100 |
|---|---|
| OUTER DIMENSIONS | W1200mm ×D340mm ×H135mm |
| WEIGHT (NET) | 10kg |
| POWER SUPPLY | AC100VorAC200V（single phase）50Hz/60Hz |
| POWER CONSUMPTION | MAX15W（AC100V） |
| O.D. SIZE | φ1mm Minimum※ |
| DRIVE | Induction motor |
| Air cylinder |
