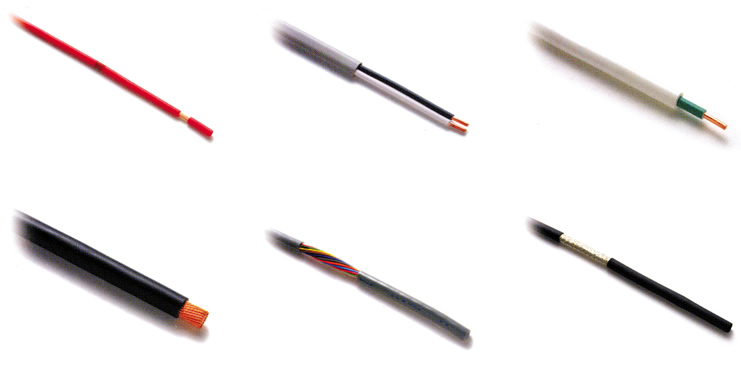

We've achieved a wide range of machining of AWG#2(30sq)～AWG#28(0.08sq) in one machine. It can be widely used in a wide variety of industries since it corresponds to the round cable up toφ11mm maximum diameter.
| MODEL | C373A | ||||||
|---|---|---|---|---|---|---|---|
| OUTER DIMENSIONS | W430mm ×D510mm ×H265mm | ||||||
| WEIGHT | 33kg | ||||||
| POWER SUPPLY | AC100V～AC240V（Single phase）50Hz/60Hz | ||||||
| POWER CONSUMPTION（100V） | 40W（Rated）215W（Max） | ||||||
| AIR SUPPLY | 9Nℓ/min 0.5MPa※1 | ||||||
| CUTTING LENGTH | 0.1mm～99,999mm | ||||||
| CUTTING TOLERANCES | ±（ 0.1＋0.0005×L ）mm※2 L : indicates a cutting length. | ||||||
| STRIPPING LENGTH |
|
||||||
| APPLICABLE WIRES |
|
||||||
| WIRE FEED SPEED | Variable | ||||||
| CUTTER MATERIAL | Ultra fine particle alloy | ||||||
| DRIVE SUPPLY | Stepping pulse motor / Air cylinder |
| Total Length | Pieces |
|---|---|
| 100mm | 2,300 |
| 200mm | 2,100 |
| 300mm | 1,950 |
| 500mm | 1,700 |
| 800mm | 1,450 |
| 1000mm | 1,300 |
| 1500mm | 1,050 |
| 2000mm | 850 |
| 3000mm | 650 |
| 5000mm | 450 |
| Core diameter | 0.75mm |
| Blade move back | 0.15mm |
| Both ends stripping | 3mm |
| Setting of speed | 9 |
| colspan="2" | |
| Wire | UL1007／AWG#22 |

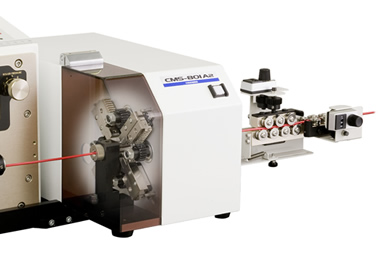

Automatic mid stripping is realized. CMS-801A2 can handle wires with an outer diameter of up to 8mm. It can mid strip in up to 10 different positions on a single wire. Automation has been accomplished thus far by this revolutionary equipment
| MODEL | CMS-801A2 |
|---|---|
| OUTER DIMENSIONS | W185mm ×D355mm ×H190mm |
| WEIGHT（NET） | 12kg |
| POWER CONSUMPTION | MAX390W 65W while idling※ |
| MID STRIPPING LENGTH | Max. up to 34mm |
| MID STRIPPING DISTANCE | Min. 48.5mm |
| MID STRIPPING POSITIONS | Max. up to 10positions |
| MAX WIRE SIZE | φ8mm |
| DRIVE | Stepping motor |

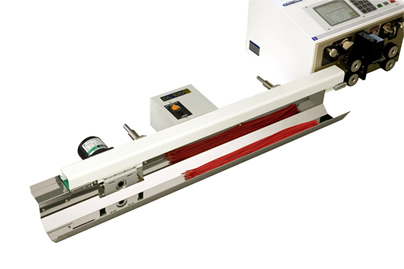

Just set up CC-100 on the left side of the CASTING series, it carries the finished wires by belt-conveyor and neatly deposits those wires on the tray. It contributes to improving the work efficiency rate.
| MODEL | CC-100 |
|---|---|
| OUTER DIMENSIONS | W1200mm ×D340mm ×H135mm |
| WEIGHT (NET) | 10kg |
| POWER SUPPLY | AC100VorAC200V（single phase）50Hz/60Hz |
| POWER CONSUMPTION | MAX15W（AC100V） |
| O.D. SIZE | φ1mm Minimum※ |
| DRIVE | Induction motor |
| Air cylinder |
