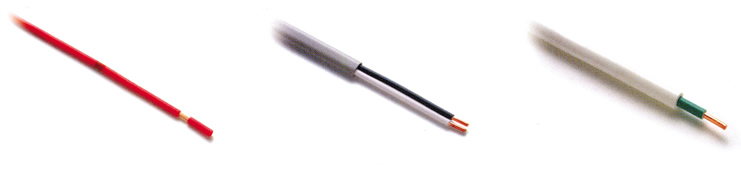

Based on C371A, we've actualized the stable length measurement by performing the wire feeding with belt feed system. It can grasp the face of the wire whose surface is unlevel, which is often seen on shield wire.
| MODEL | C381A | ||||||
|---|---|---|---|---|---|---|---|
| OUTER DIMENSIONS | W430mm ×D420mm ×H270mm | ||||||
| WEIGHT | 27kg | ||||||
| POWER SUPPLY | AC100V～AC240V（Single phase）50Hz/60Hz | ||||||
| POWER CONSUMPTION（100V） | 47W（Rated）215W（Max） | ||||||
| CUTTING LENGTH | 0.1mm～99,999mm | ||||||
| CUTTING TOLERANCES | ±（ 0.1＋0.0005×L ）mm※2 L:indicates a cutting length. | ||||||
| STRIPPING LENGTH |
|
||||||
| APPLICABLE WIRES |
|
||||||
| WIRE FEED SPEED | Variable | ||||||
| CUTTER MATERIAL | Ultra fine particle alloy | ||||||
| DRIVE SUPPLY | Stepping pulse motor |
Automatic mid stripping is realized. CMS-801A2 can handle wires with an outer diameter of up to 8mm. It can mid strip in up to 10 different positions on a single wire. Automation has been accomplished thus far by this revolutionary equipment.
| MODEL | CMS-801A2 |
|---|---|
| OUTER DIMENSIONS | W185mm ×D355mm ×H190mm |
| WEIGHT | 12kg |
| POWER CONSUMPTION | MAX390W 65W while idling※ |
| MID STRIPPING LENGTH | Max. up to 34mm |
| MID STRIPPING DISTANCE | Min. 48.5mm |
| MID STRIPPING POSITIONS | Max. up to 10positions |
| MAX WIRE SIZE | φ8mm |
| DRIVE | Stepping motor |
Just set up CC-100 on the left side of the CASTING series, it carries the finished wires by belt-conveyor and neatly deposits those wires on the tray. It contributes to improving the work efficiency rate.
| MODEL | CC-100 |
|---|---|
| OUTER DIMENSIONS | W1200mm ×D340mm ×H135mm |
| WEIGHT (NET) | 10kg |
| POWER SUPPLY | AC100VorAC200V（single phase）50Hz/60Hz |
| POWER CONSUMPTION | MAX15W（AC100V） |
| O.D. SIZE | φ1mm Minimum※ |
| DRIVE | Induction motor |
| Air cylinder |
