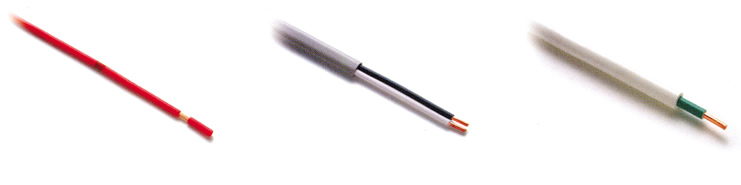

With attaching optional equipments, wide array of processing such as Slitting or Mid-stripping processing can be performed in addition to Cut, Strip, Half-strip, Double Sheath-strip and Divide-strip.
| MODEL | C371A | ||||||
|---|---|---|---|---|---|---|---|
| OUTER DIMENSIONS | W430mm ×D420mm ×H270mm | ||||||
| WEIGHT | 27kg | ||||||
| POWER SUPPLY | AC100V～AC240V（Single phase）50Hz/60Hz | ||||||
| POWER CONSUMPTION（100V） | 47W（Rated）215W（Max) | ||||||
| CUTTING LENGTH | 0.1mm～99,999mm | ||||||
| CUTTING TOLERANCES | ±（ 0.1＋0.0005×L ）mm※2 L:indicates a cutting length. | ||||||
| STRIPPING LENGTH |
|
||||||
| APPLICABLE WIRES |
|
||||||
| WIRE FEED SPEED | Variable | ||||||
| CUTTER MATERIAL | Ultra fine particle alloy | ||||||
| DRIVE SUPPLY | Stepping pulse motor |
| Total Length | Pieces |
|---|---|
| 100mm | 7,100 |
| 200mm | 6,550 |
| 300mm | 6,050 |
| 500mm | 5,250 |
| 500mm | 7,600 |
| 1000mm | 2,550 |
| 800mm | 4,400 |
| 1000mm | 5,800 |
| 1500mm | 3,150 |
| 2000mm | 2,700 |
| 3000mm | 1,950 |
| 5000mm | 1,350 |
| 3000mm | 3,000 |
| Both ends stripping | 3mm |
| Setting of speed | 9 |
| Thin wire mode | |
| Wire | UL1007 ／ AWG#22 |

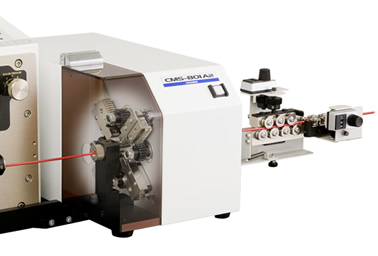

Automatic mid stripping is realized. CMS-801A2 can handle wires with an outer diameter of up to 8mm. It can mid strip in up to 10 different positions on a single wire. Automation has been accomplished thus far by this revolutionary equipment.
| MODEL | CMS-801A2 |
|---|---|
| OUTER DIMENSIONS | W185mm ×D355mm ×H190mm |
| WEIGHT | 12kg |
| POWER CONSUMPTION | MAX390W 65W while idling※ |
| MID STRIPPING LENGTH | Max. up to 34mm |
| MID STRIPPING DISTANCE | Min. 48.5mm |
| CONTROL BOX | 5.0kg |
| MID STRIPPING POSITIONS | Max. up to 10positions |
| MAX WIRE SIZE | φ8mm |
| DRIVE | Stepping motor |
