Specification

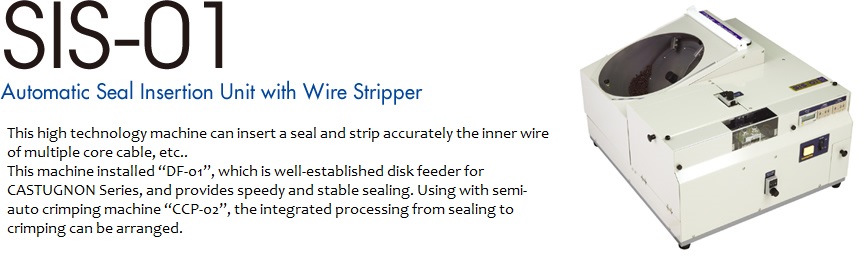

| MODEL | SIS-01 |
|---|---|
| OUTER DIMENSIONS | W467×D530×H320（mm） |
| WEIGHT | 42kg |
| POWER SUPPLY | AC100V ～ AC240V（single phase）50Hz/60Hz |
| POWER CONSUMPTION | 54W（At Rest） 160W（100V）Max. |
| MINIMUM WIRE LENGTH | 80mm |
| TACT TIME | abt 1.2 sec.per cycle |
| PRESS STROKE | 30mm Option 40mm |
| DRIVE SUPPLY | Stepping Motor, Air Cylinder |
